How to use Baie Interpolation v2

Thank you and congratulations on choosing Baie Interpolation v2. This guide will help you get familiar with Baie Interpolation v2

Main Form

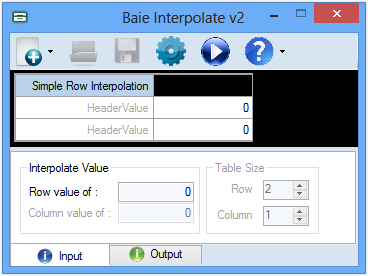

This is the main screen you will get after installing Baie Interpolation v2

Main Program window

Files-New-File-icon New: Click this icon to refresh or open new interpolation
Status-folder-open-icon Open: Click this icon to open file
save-icon (1) Save: Click this icon to save your Table
 config_tool_icon_blue Setting: Click this icon to view option for interpolation
Player Play Run: Click this icon to run the interpolation process
icon_help Help: Click this icon to get help
 information (1) Input: Click this icon to insert your interpolation value needed in table
 information_green Output: Click this icon to view current process result
exit Exit: Click this icon to close Baie Interpolation v2

Different Case of Interpolation

Simple Row Interpolation

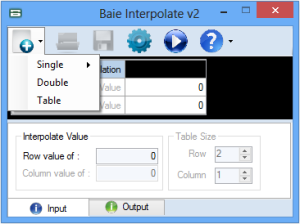

[tabs vertical=”yes”][tab title=”Case 1 – Description”] This case shows how to open Simple Row Interpolation interface[/tab] [tab title=”Step 1″]Click button “New option”

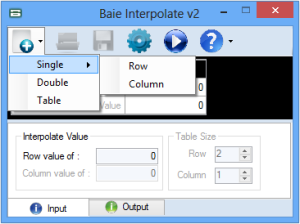

Click option New[/tab] [tab title=”Step 2″]Click “Single” and another option appear. Then click “Row”

single row n column[/tab] [tab title=”Step 3″]Simple row interpolation table appear

Main Form

Note* Step 1 until 3 no need to do if this software already appear “Simple Row Interpolation”.[/tab][/tabs]

Simple Column Interpolation

[tabs vertical=”yes”][tab title=”Case 1 – Description”]This case shows how to open Simple column interpolation interface[/tab] [tab title=”Step 1″]Click “New Option” button

Click option New[/tab] [tab title=”Step 2″]Click “Single” and another option appear. Then click “Column”

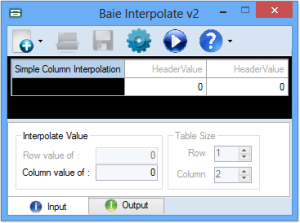

single row n column[/tab] [tab title=”Step 3″]Simple column interpolation table appear

Simple Column Interpolation[/tab][/tabs]

Double Interpolation

[tabs vertical=”yes”][tab title=”Case 1 – Description”]This case shows how to open double interpolation interface[/tab] [tab title=”Step 1″]Click “New Option” button

Click option New[/tab] [tab title=”Step 2″]Click “Double” and double interpolation table will appear

Double Interpolation[/tab][/tabs]

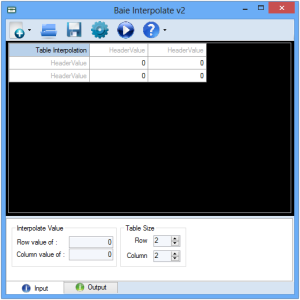

Table Interpolation

[tabs vertical=”yes”][tab title=”Case 1 – Description”]This case shows how to open Table interpolation interface[/tab] [tab title=”Step 1″]Click “New Option” button

Click option New[/tab] [tab title=”Step 2″]Click “Table” and Table interpolation will appear

Table Interpolation[/tab][/tabs] [tabs vertical=”yes”][tab title=”Case 2 – Description”]Base on table Coefficient of Broad Crested Weir (CBCW), how to answer the question using Baie Interpolate v2.

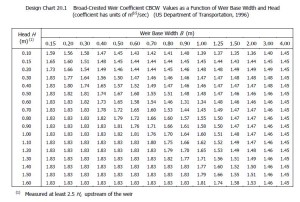

Example Table Broad-Crested Weir Coefficient CBCW

Question 1: What coefficient CBCW when Head is 0.30m and Width is 0.70m

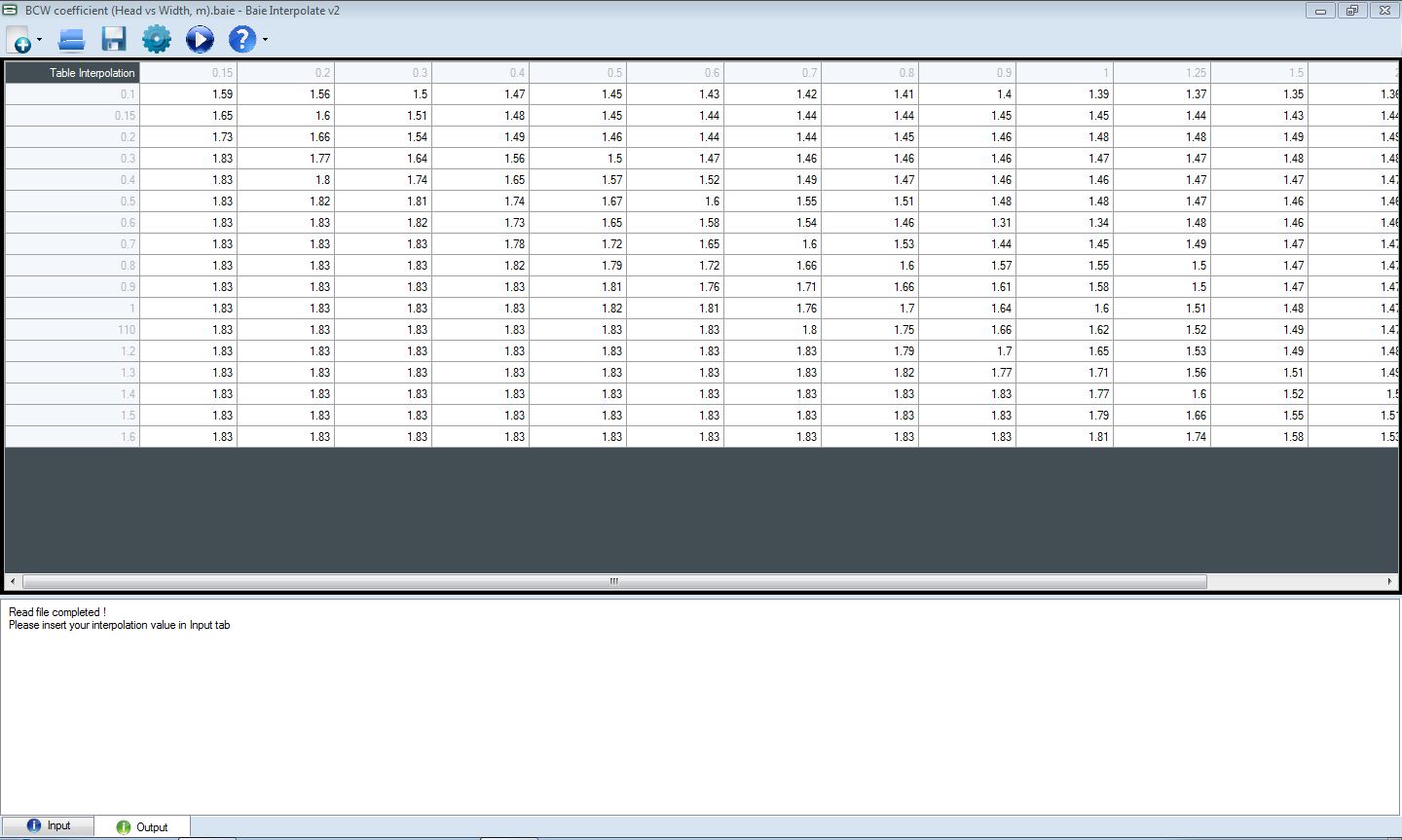

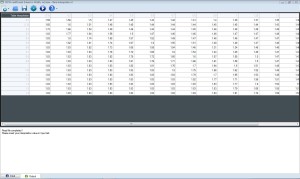

Question 2: What coefficient CBCW when Head is 1.1m and Width is 1.23m[/tab] [tab title=”Step 1″]Insert table value in Baie Interpolate v2 Software and click button save for future used

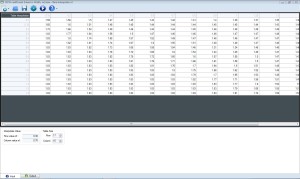

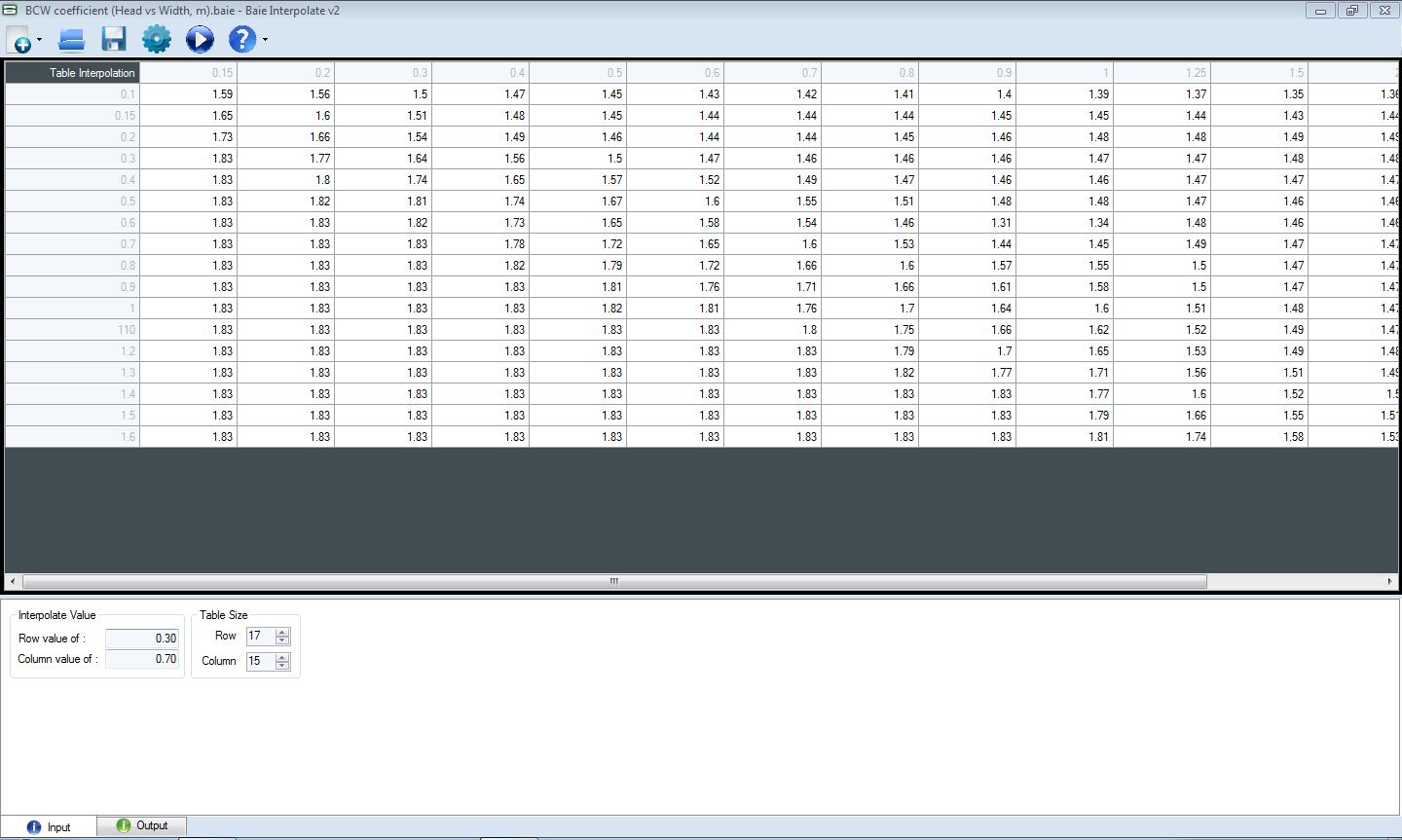

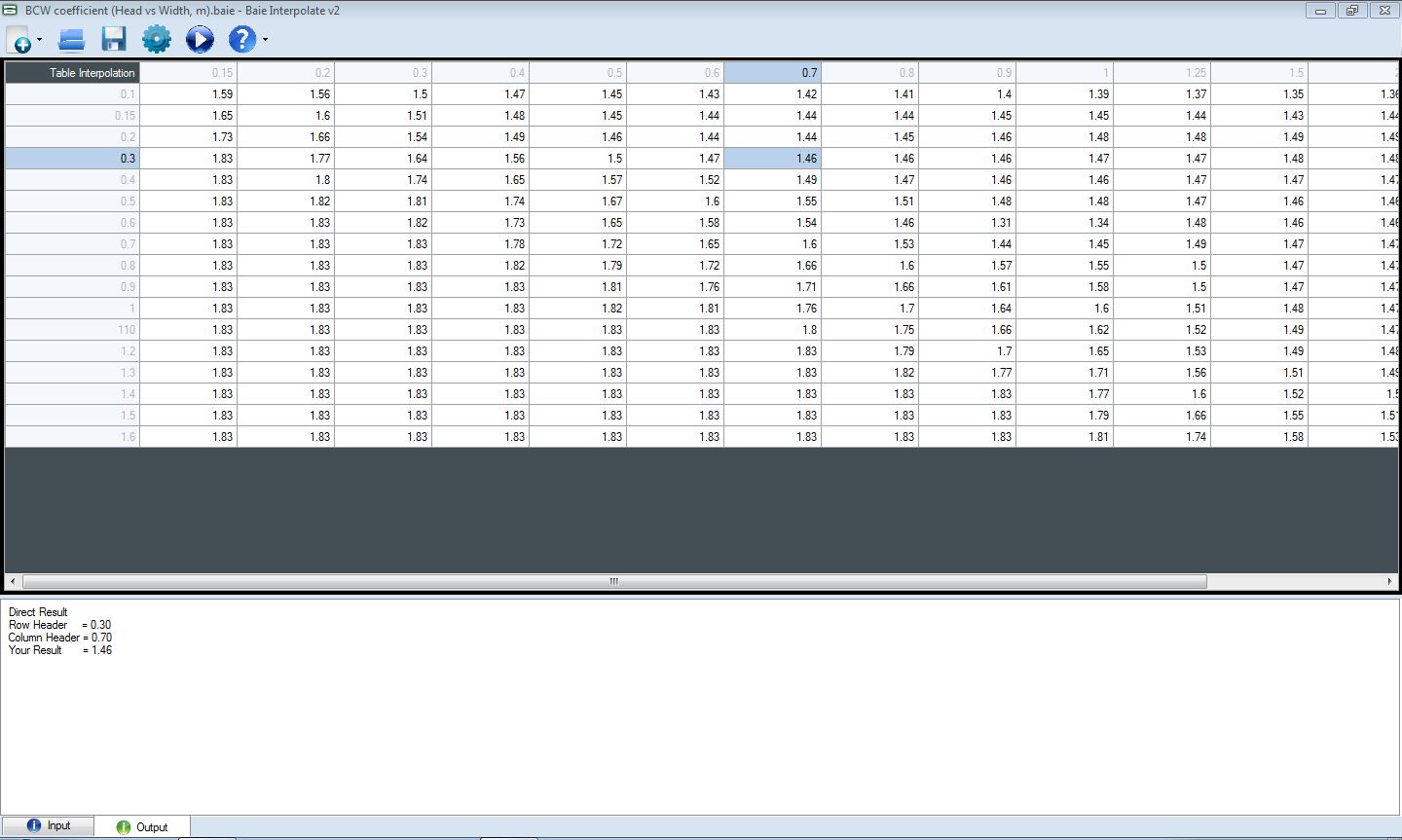

Table in[/tab]  [tab title=”Step 2″]For Question 1, Insert Row = 0.30m and Column = 0.70m and click button run, result will appeared in output tab and you can see the related value in table already highlight.

Figure 1 : Insert value

insert data

Figure 2: Run Interpolation

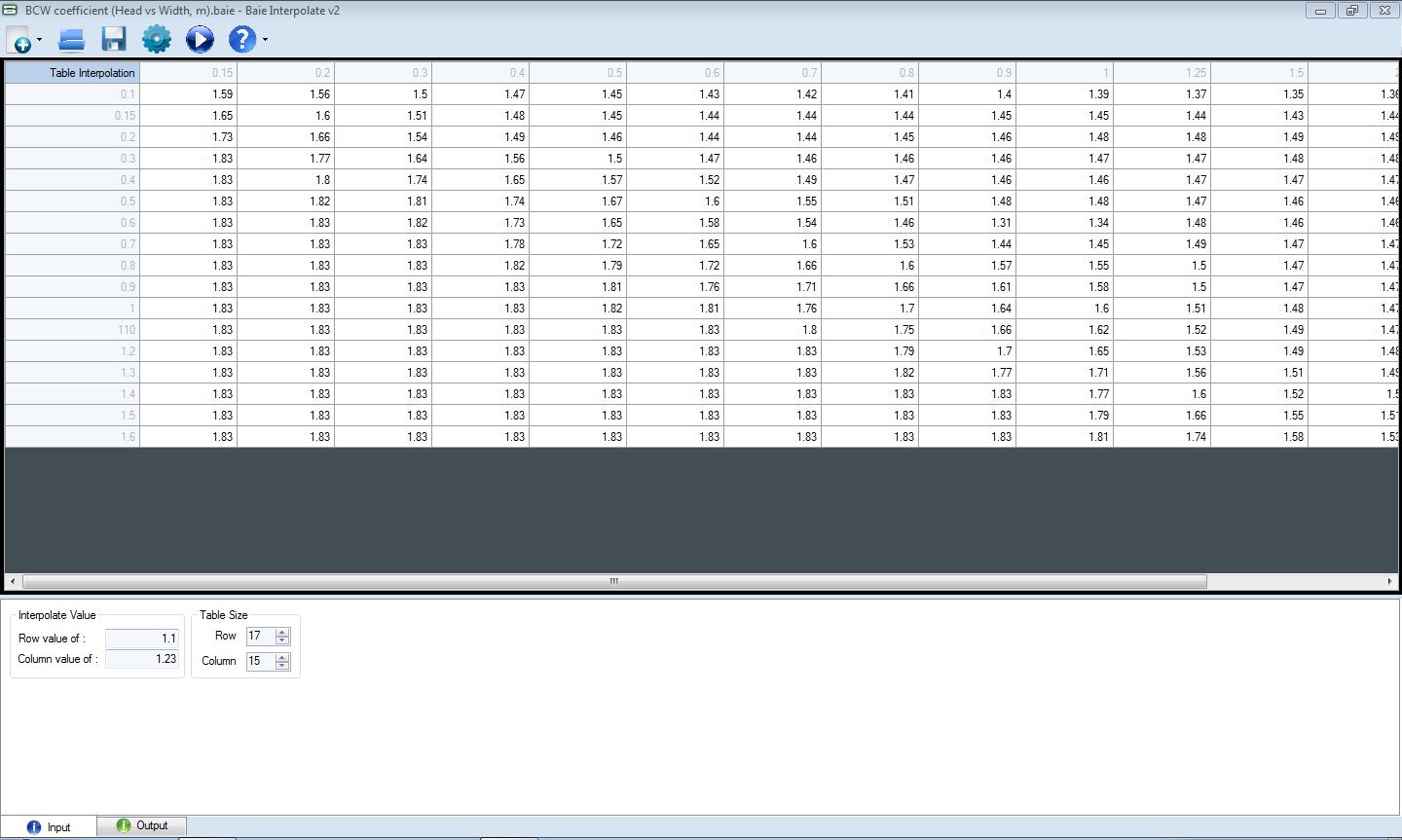

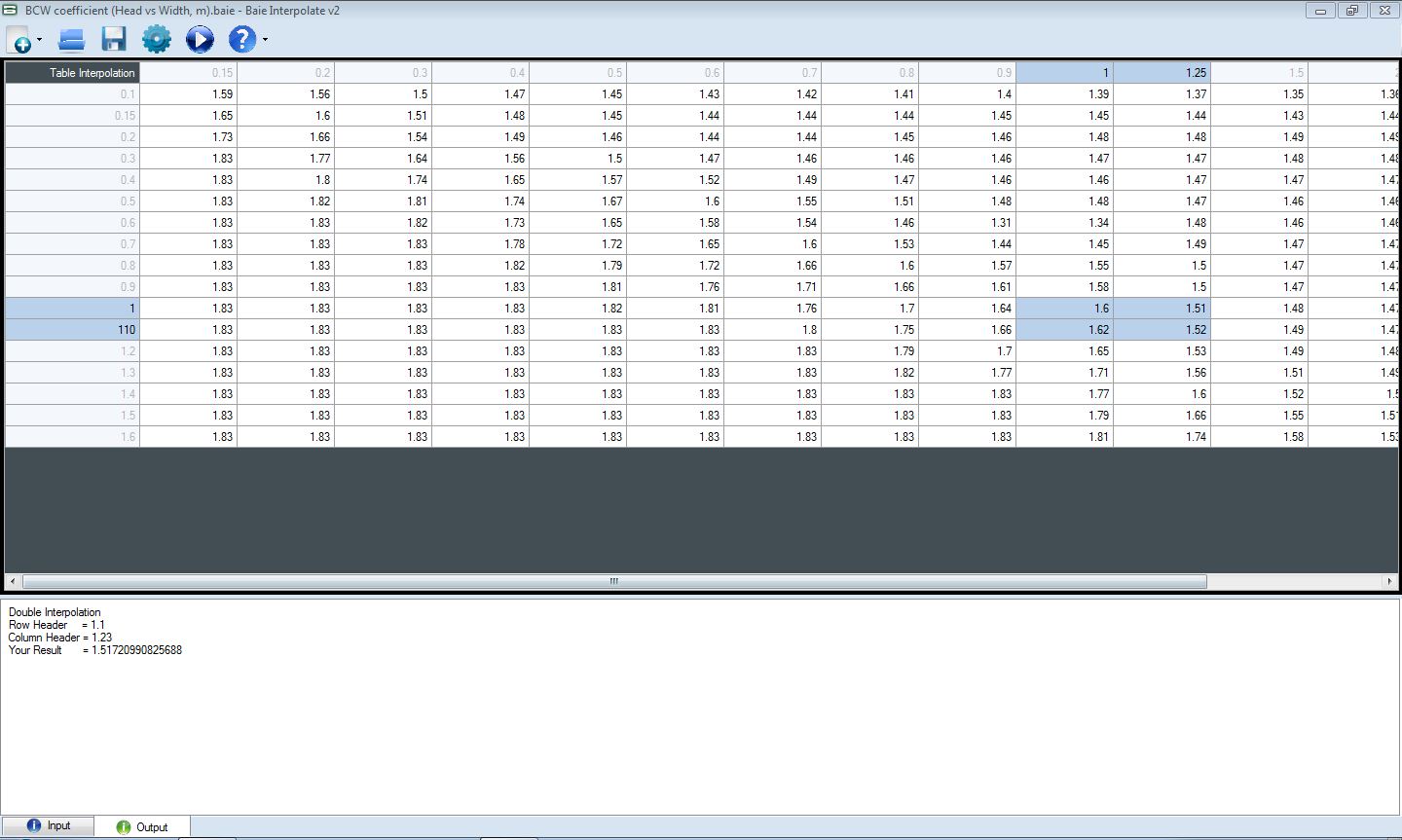

run1[/tab] [tab title=”Step 3″]For Question 2, Insert Row = 1.1m and Column = 1.23m and click buton run, result will appeared in output tab and you can see the related value in table already highlight.

Figure 1: Insert value

insert data 2

Figure 2: Run interpolation

run2[/tab][/tabs]

Videos

Learn Simple Row Interpolation, Simple Column Interpolation and Double interpolation from this video.
